BLOCK PBB50, 60, 70 & 80 - SINGLE/BECKET

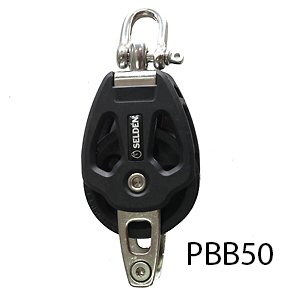

BLOCK PBB50 - SINGLE / BECKET
SWL 650kg. Max line size 12mm. Weight 121g
Plain bearing blocks provide great performance in static applications with heavy loads.
TECHNICAL FEATURES PBB 50
● Polymer sheave.
● Stainless steel strap for strength and long service life.
● Torsional rigid cheeks in glass fibre reinforced polymer to prevent jamming.
● Sliding swivel locking mechanism.

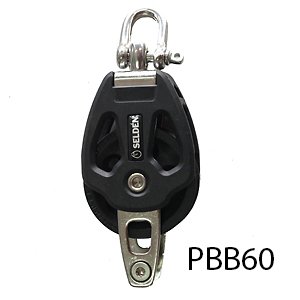

BLOCK PBB60 - SINGLE / BECKET
SWL 1000kg. Max line size 14mm. Weight 220g
Plain bearing blocks provide great performance in static applications with heavy loads.
TECHNICAL FEATURES PBB 60
● Polymer sheave.
● Stainless steel strap for strength and long service life.
● Torsional rigid cheeks in glass fibre reinforced polymer to prevent jamming.
● Sliding swivel locking mechanism.

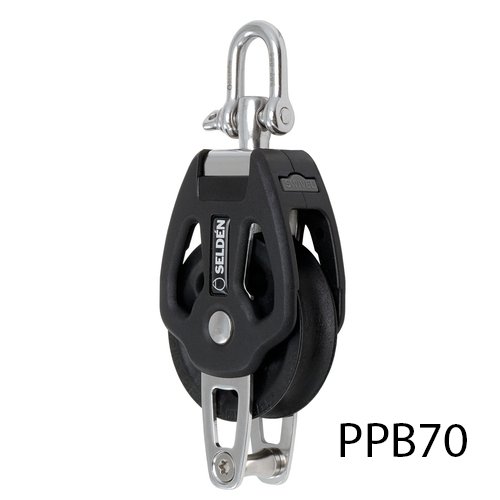

BLOCK PBB70 - SINGLE / BECKET
SWL 1500kg. Max line size 14mm. Weight 285g
Plain bearing blocks provide great performance in static applications with heavy loads.
TECHNICAL FEATURES PBB 70
● Glass fibre reinforced sheave with polymer bushing.
● The shackle features a Ø 6 mm body and Ø 8 mm pin, a strong and lightweight combination.
● Stainless steel strap for strength and long service life.
● Torsional rigid cheeks in glass fibre reinforced polymer to prevent jamming.
● Sliding swivel locking mechanism.

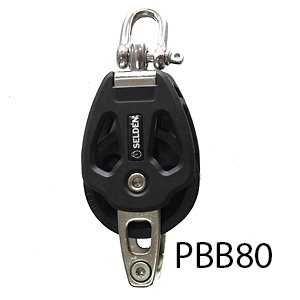

BLOCK PBB80 - SINGLE / BECKET
SWL 2000kg. Max line size 16mm. Weight 554g
Plain bearing blocks provide great performance in static applications with heavy loads.
TECHNICAL FEATURES PBB 80
● Glass fibre reinforced sheave with polymer bushing.
● The shackle features a Ø 8 mm body and Ø 10 mm pin, a strong and lightweight combination.
● Stainless steel strap for strength and long service life.
● Torsional rigid cheeks in glass fibre reinforced polymer to prevent jamming.
● Sliding swivel locking mechanism.
