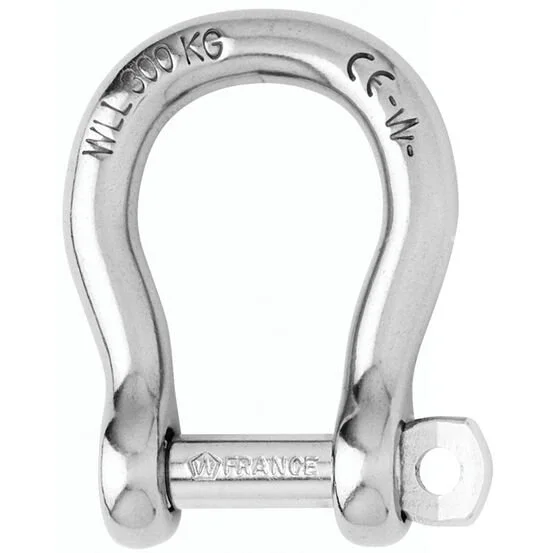

Part #WD-1246
Self-locking bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking
To be used when ample room is required
Possibility to attach several lines or cables
Materials316 stainless steel grade
Working load (kg)2080
WLL (kg)1200
Breaking load (kg)6000
Weight (g)233

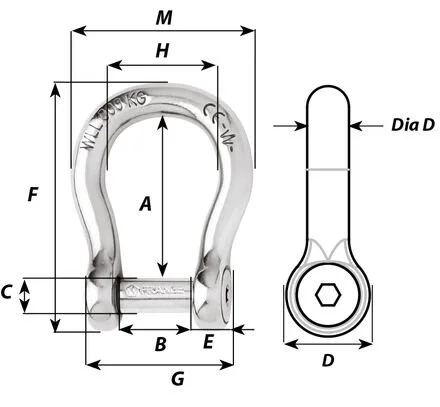

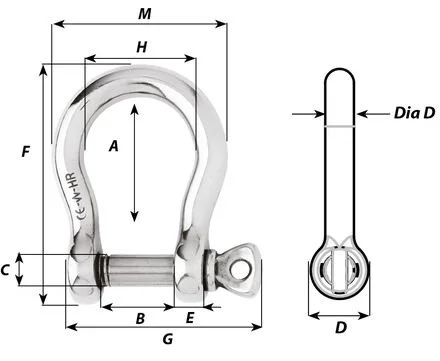

A (mm)55
B (mm)27
C (mm)12
D (mm)24
D diameter (mm)12
E (mm)10
F (mm)87
G (mm)61
H (mm)38.5
M (mm)63
